Into a Cabinet or the Ceiling Goes the Best Hidden Range Hood

Affiliate Disclosure: As an Amazon Associate, we earn from qualifying purchases. This does not affect the price you pay.

“Hidden” sounds like one kind of range hood. Read ten listings sold under that idea and it turns out to be two different jobs. Seven of the ten hide inside a cabinet or a custom hood shell, so the only thing you see is a strip of stainless steel under the cupboard line. Three sit flush in the ceiling, with nothing hanging down at all.

The two hidden routes ask for completely different things from your kitchen. A cabinet insert needs a box of the right width and depth. Broan-NuTone’s PM300SS power pack says its liner “accommodates up to 13” deep cabinets”, with extensions to 15 inches. FIREDRAJA’s 27.8-inch insert is “Designed to integrate with standard 27-28 inch cabinet openings”. A ceiling hood needs space above the plaster. VICTORY’s Sunset “Installs seamlessly between 16-inch on-center ceiling joists”. Both Awoco ceiling hoods are split designs: the hood goes in the ceiling and the blower goes “in the attic”.

The ceiling hoods also start higher on airflow. All three state 600 CFM or more: 600 on the VICTORY and 800 on both Awocos. That fits the physics. A flush ceiling hood sits far above the cooktop, where the plume of smoke and steam has already spread out and mixed with room air, so it has to pull harder to catch the same smoke. That is the general reason ceiling-mount listings tend to quote high CFM or a split design that puts a bigger blower in the attic. The cabinet inserts run from 300 CFM on the Broan-NuTone power pack to 1150 CFM on the SINDA and 1200 CFM on the HisoHu.

And shoppers mostly buy the cabinet route. The three ceiling hoods hold the three weakest Best Sellers Ranks on the page: #254, #496 and #528 in Range Hoods. The Broan-NuTone PM300SS, a plain 300 CFM power pack for a custom shell, is #14 in Range Hoods and the best-ranked product here.

Every option on this page is a major installation. A cabinet insert means cutting or building a cabinet, running a duct and wiring the unit in. A ceiling hood means opening the ceiling, working around or between joists, putting a blower in the attic in two of the three cases, and running a duct out through the roof or a wall. For most kitchens, a licensed contractor and electrician are the safe choice, and some areas require make-up air for high-CFM hoods.

So this guide sorts the ten by where they hide and what each hiding place demands: cabinet width and depth for the inserts, joist spacing and attic space for the ceiling hoods, and the duct, wiring and controls each one needs. Star ratings and review counts were not captured for this roundup; popularity below is Amazon’s Best Sellers Rank only.

All ten were captured on 5 October 2026. Their Range Hoods ranks run from #14 to #528, and the best-ranked ceiling hood sits eighth of ten.

Our Quick Picks

At a Glance

Ten Hidden Range Hoods, Sorted by Where They Hide

Read the first column first: it decides what your kitchen must provide, and the third column says what that is.

#	Model	Where It Hides	Max CFM	What It Needs	Best Sellers Rank	Standout	Main Drawback	Check Price
1	Broan-NuTone PM300SS	Cabinet or custom shell	300	Cabinet up to 13 in deep (15 in with extensions)	#14 in Range Hoods	Best rank; 3 sones stated; sold by Amazon.com	Lowest CFM here; duct size not stated	View on Amazon
2	VICTORY Sunset	Flush in ceiling	600	Bay between 16 in on-centre joists; 6 in duct	#528 in Range Hoods	No attic blower; wall switch included	Colour says matte white, bullets say brushed steel	View on Amazon
3	JOCO 42-Inch Insert	Cabinet or custom shell	900	Opening for a 41.73 in wide unit	#77 in Range Hoods	10-year motor warranty; 40 dB on low	65 dB on high; duct size not stated	View on Amazon
4	KENDRAJA 24-Inch Insert	Cabinet or custom shell	400	24 in cabinet; ducted or ductless	#125 in Range Hoods	Only 24-inch hidden option here	Title says 3-speed, bullet says two-speed	View on Amazon
5	FIREDRAJA 27.8-Inch Insert	Cabinet or custom shell	400	27–28 in cabinet opening	#215 in Range Hoods	States the cabinet opening it fits	No noise figure or duct size	View on Amazon
6	HisoHu 30-Inch Insert	Cabinet or custom shell	1200	30 in opening; ductless kit included	#186 in Range Hoods	Highest CFM here; 55 dB at max stated	Warranty fields disagree: 2 or 5 years	View on Amazon
7	magicplux 30-Inch Built-in	Built-in (title only)	600	About 29.5 in wide opening	#208 in Range Hoods	Ducted or ductless, charcoal filter included	No cabinet depth, speeds or noise figure	View on Amazon
8	Awoco 30 x 14-1/2 Split	Flush in ceiling	800	Attic for remote blower; 6 in round duct	#254 in Range Hoods	2.5 sones on low, 5.5 on high stated	No wall-switch control; no cutout given	View on Amazon
9	Awoco 30-Inch Flush Split	Ceiling or wood hood	800	Attic blower; 27-7/8 x 17 in cutout	#496 in Range Hoods	Voice, gesture, touch and remote control	17 in cutout is wider than a joist bay	View on Amazon
10	SINDA 42-Inch Insert	Built-in insert (title)	1150	Shell for a 40-3/8 in unit; 8 in round duct	#123 in Range Hoods	250 CFM more than the JOCO; duct stated	65.5 lb; 2-year warranty; no cutout given	View on Amazon

Best Sellers Ranks and specifications are taken from each manufacturer’s Amazon listing as displayed on 5 October 2026 through a United States connection, and may change. Where It Hides is taken from each listing’s own words. The magicplux says “Built-in” in its title and nothing about cabinets in its bullets. The SINDA’s title says both “Built-in Range Hood Insert” and “Under Cabinet Vent Hood”; we file it as an insert. The Awoco 30 x 14-1/2 split’s CFM is given as approximately 200, 400, 600 and up to 800 across four speeds. The magicplux opening width is our rounding of its listed 29.527559025 inches. The HisoHu spec table lists dimensions that cannot describe a 30-inch insert, so they are left out. Ranks are category ranks in Range Hoods as returned on 5 October 2026; overall ranks run from #118 to #3,140. The KENDRAJA, HisoHu, JOCO and SINDA were flagged as scarce stock at capture. Star ratings and review counts were not captured for any product here.

Scroll the table sideways to see every column

How We Chose These Ten

We researched current listings, compared manufacturer specifications and documentation, and read each listing’s claims about where it installs, how much air it moves and what it needs around it. We did not carry out hands-on testing, and nothing below is presented as measured performance data. Star ratings and review counts were not captured for this roundup. We used Amazon Best Sellers Rank, buy-box stock and listing specifications instead, and nothing on this page describes or implies how owners have scored these hoods.

• Hoods sold to disappear — power packs, built-in inserts and flush ceiling hoods, the products a shopper finds when looking for a hidden range hood. Visible under-cabinet hoods were left out, even where a title calls them an insert.
• Sorted by hiding place — each product is filed as cabinet or custom shell, or flush ceiling, using the listing’s own description. Where a listing names two places, as the Awoco flush split does with “ceiling or wood hood”, we report both.
• Installation needs recorded as printed — cabinet depth, cabinet opening, joist spacing, cutout size, attic blower, duct size and control type, logged only where a listing states them. Anything missing is marked not stated.
• Airflow and noise as claimed — maximum CFM, sones and decibels exactly as each listing gives them. These are manufacturer figures, not measurements, and listings use sones and decibels inconsistently, so we compare like with like only.
• Conflicts reported, not resolved — where a title and a bullet disagree on speed count, or a bullet and the spec table disagree on warranty or colour, both figures appear. Spec-table dimensions that cannot describe the product are left out and flagged.
• Popularity from Best Sellers Rank only — ranks are quoted exactly as returned on 5 October 2026, overall and in Range Hoods. All ten share the Range Hoods category, so those ranks compare directly, but they move constantly.
• Verified stock and seller — each product was the buy-box offer and in stock on amazon.com on 5 October 2026. Four were flagged as scarce stock at capture.

The Ten Hidden Range Hoods in Detail

Hidden in a Cabinet or Flush in the Ceiling

The title of this page is the finding. Ten products sold to shoppers who want a hood they cannot see split into two ways of hiding, and each way puts different demands on the kitchen. Here is the split, product by product, with what each one needs from the room around it.

Seven hide in a cabinet or shell. The Broan-NuTone PM300SS, KENDRAJA, FIREDRAJA, magicplux, HisoHu, JOCO and SINDA. Their widths run from 21.37 to 41.73 inches, so there is a cabinet insert here for every common range size from 24 to 36 inches and beyond. What they need is a box: a cabinet or a built hood shell of the right inside width and depth, with room above for a duct. Only two say what box. The Broan-NuTone gives a depth range, 13 inches or 15 with extensions, and the FIREDRAJA gives an opening, 27 to 28 inches. The other five give their own size and leave the box to you, and only the SINDA states a duct size. Our 30-inch range hood insert roundup looks at the 30-inch option in more depth.

Three hide in the ceiling. The VICTORY Sunset and the two Awoco splits. What they need is space above the ceiling: a joist bay, a cut and headed opening, or an attic. The VICTORY fits between 16-inch on-centre joists with its blower on board. Both Awocos send the blower to the attic, and the flush split gives a 17-inch-deep cutout, wider than the roughly 14.5-inch gap between standard joists at 16-inch centres, by our arithmetic. One of the Awocos can go in a wood hood instead, which turns it into an insert with a remote motor.

The Two 42-Inch Inserts, Side by Side

Two inserts here suit a wide custom hood, and neither wins outright. Here is how their listings compare.

The SINDA buys airflow and information; the JOCO buys quiet, control and cover. By our arithmetic, the SINDA moves 250 more CFM and is 3.13 inches shorter, and it states its duct and its plug. The JOCO gives a quiet low-speed figure, a remote for a high shell, a far longer warranty and 21.5 fewer pounds for the shell to carry, again by our arithmetic. We keep the JOCO as the wide-cabinet pick for its warranty, rank and low-speed noise. Pick the SINDA if you cook hard enough to want the extra airflow and want the duct size settled before the shell is built.

Why the Best Flush Mount Range Hood Starts at 600 CFM

A hood catches smoke best close to the source. Smoke, steam and grease rise off a pan as a plume that widens and slows as it goes, pulling in room air on the way. An under-cabinet hood or a cabinet insert typically sits around 2 to 3 feet above the cooktop, close enough to catch the plume while it is still narrow. A flush ceiling hood sits wherever the ceiling is, often 4 feet or more above the burners in a standard-height kitchen and more in a tall one. By then the plume has spread and the hood has to pull it in from a much wider area.

That is why ceiling-mount listings tend to quote high airflow, a split design, or both. More airflow helps a hood catch a spread-out plume. A split design moves a larger blower into the attic, where its noise does not fill the kitchen. On this page, all three ceiling hoods state 600 CFM or more:

CFM is not the whole story for a ceiling hood. Capture area matters too. The Awoco flush split is 18-3/8 inches deep and 29-1/4 inches wide; the Awoco split is 14-1/2 by 27-5/8; the VICTORY’s spec table gives 38.5 by 19.5 inches. A hood that covers more of the cooktop, and extends past its edges, catches more of a wide plume. The VICTORY adds perimeter suction, which speeds up the air at the edges of the panel. None of the three listings gives a recommended mounting height above the cooktop, and that is the question to ask before buying any of them.

The cabinet inserts can afford lower figures because they sit lower. The 300 CFM Broan-NuTone in a well-shaped shell 30 inches or so above an everyday range is a different situation from a 300 CFM fan in a ceiling. If you want a hood that disappears and you cook hard, the cabinet route with a high-CFM insert, the JOCO, SINDA or HisoHu, will usually catch more for the same airflow than a ceiling hood.

What Each Hiding Place Asks From Your Kitchen

Every product on this page is a construction job, and the job is different for each route. None of the listings says so in as many words, but the requirements are all there in the specifications.

• Cabinet inserts need a box, a duct and power. Cutting into an existing cabinet or building a hood shell to the insert’s size; running a duct from the top of the cabinet up through the ceiling or out through a wall, unless you run it ductless; and wiring the unit to a circuit. The FIREDRAJA gives 120V/60Hz and the SINDA a 3-prong plug; the others give less. Depths matter: the JOCO, SINDA and KENDRAJA are 18 to 18.5 inches deep by their listings, deeper than a typical upper cabinet.
• The VICTORY needs a joist bay and a duct. An opening in the ceiling between joists at 16-inch centres, a 6-inch duct out through the top or side, and wiring for the hood and its glass wall switch. The listing does not give a cutout or an above-ceiling depth.
• The Awoco splits need an attic, two mounts and two runs of cable. A ceiling opening for the hood, a secure mount in the attic for a 20.4-pound blower, a 6-inch round duct from the blower to outside, a 12-foot control cable between hood and blower, and power. The 30 x 14-1/2 split comes with a cord and plug, so an attic outlet is part of the job; neither works with a wall switch.

A licensed contractor and electrician are the safe choice for all three routes. Cutting ceiling joists is structural work, and both cabinet and ceiling installs involve new wiring near a heat source and a duct penetrating the roof or an outside wall. In many areas, that work needs a permit and an inspection.

Make-up air can come into it. A hood that blows hundreds of cubic feet of air out of a tight, modern house every minute has to draw replacement air from somewhere. In some areas, local codes require a make-up air system above a certain hood airflow, and the threshold varies. Several hoods here state 600 to 1200 CFM. Ask your installer or local building department before you choose the airflow, not after. In homes with gas or wood appliances, an exhaust fan pulling against a tight house can also draw combustion gases back down a flue; a fitted carbon monoxide alarm is sensible in any kitchen with gas.

Ductless is possible on some inserts, not on the ceiling hoods. The KENDRAJA, FIREDRAJA, magicplux and HisoHu offer ductless operation by their titles or bullets, and the magicplux names a charcoal filter. All three ceiling hoods are ducted only by their listings. A ductless hood filters grease and odour but returns heat and moisture to the room; our recirculating range hood roundup covers that trade-off.

Popularity Follows the Cabinet

Star ratings were not captured for this roundup, so the only popularity measure here is Amazon’s Best Sellers Rank, as returned on 5 October 2026. All ten are ranked in Range Hoods, so their category ranks compare directly. Ranks move constantly, so read the order rather than the precise numbers.

The ceiling hoods fill the last three places. The best-ranked of them, the Awoco split at #254, sits behind every cabinet insert on the page. That is not a judgement on the hoods. A flush ceiling hood needs a ceiling with space above it and a buyer willing to open it up, and far fewer kitchens offer that than offer a cabinet over the range. The most popular hidden hood here is the simplest one, the Broan-NuTone power pack at #14, and the two 42-inch inserts follow at #77 and #123.

Best Alternatives

What the Step Up Buys

The simple power pack — Broan-NuTone PM300SS. 300 CFM, 3 sones, a stated cabinet depth and the best rank on the page. It buys concealment inside a custom shell for everyday cooking, with the shell doing the shaping.

The full-width cabinet inserts — KENDRAJA, FIREDRAJA, magicplux. 400 to 600 CFM across 24 to about 30 inches. The step up buys an insert that spans the cooktop on its own, more airflow, and ducted or ductless options. The FIREDRAJA adds a stated cabinet opening; the magicplux adds a named charcoal filter.

The high-CFM inserts — JOCO, SINDA and HisoHu. 900, 1150 and 1200 CFM. This step buys enough airflow for heavy gas cooking in a hidden install, and baffle filters; the JOCO adds a 10-year motor warranty, the SINDA a stated 8-inch duct, and both a 42-inch class width. It also brings the make-up air question closer.

The flush ceiling hoods — VICTORY and the two Awocos. 600 to 800 CFM with nothing hanging down at all. This step buys the cleanest look on the page and, on the Awoco splits, the motor moved out of the kitchen. It costs you a ceiling opening, possibly cut joists, an attic blower on two of the three, and capture from much farther away. The VICTORY adds a joist-bay fit, on-board blower, wall switch and the longest warranty among them.

What to Check Before You Buy

Decide Cabinet or Ceiling First

Everything else follows from this. Seven products here hide in a cabinet or shell and three in the ceiling. If there is a cabinet or a planned hood shell over your range, start with the inserts. If there is open ceiling and you want nothing in view, start with the three ceiling hoods, and check the framing above before falling for any of them.

Measure the Inside of the Cabinet, Not the Front

An insert has to fit the inside width and depth of the box. The FIREDRAJA states a 27 to 28 inch opening; the Broan-NuTone states 13 inches of depth, or 15 with extensions. The JOCO is 18.5 inches deep and the KENDRAJA and SINDA 18 inches by their listings, deeper than many standard upper cabinets. Measure inside, and leave room above for the duct.

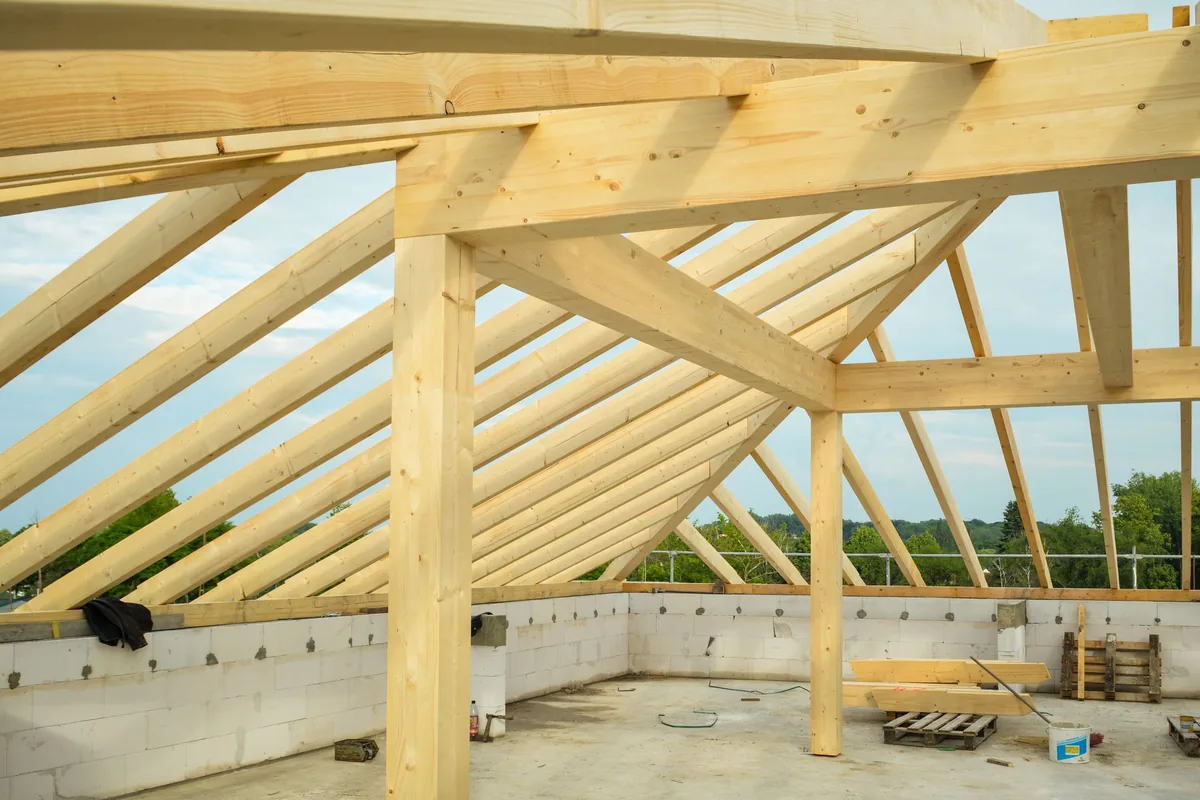

Find Out Which Way the Joists Run

For a ceiling hood, the joists decide the install. The VICTORY fits between 16-inch on-centre joists. The Awoco flush split needs a 27-7/8 by 17 inch cutout, wider than the clear gap at 16-inch centres, by our arithmetic. The other Awoco gives no cutout. A contractor can find the joists, check their direction and depth, and say whether any must be cut.

Check for an Attic Above

Both Awoco ceiling hoods put the blower in the attic: a 13-1/2 by about 12 by 18 inch box weighing 20.4 pounds, with a 12-foot cable to the hood. If there is a room, a flat roof or no access above the kitchen, they will not work as designed, and the VICTORY is the only ceiling hood here that keeps its blower on board.

Plan the Duct Before the Hood

The ceiling hoods use 6-inch round ducts, top vent on the Awocos and top or side on the VICTORY. The SINDA is the only cabinet insert that states one, 8-inch round. The other inserts do not state a duct size, so get it from the manual. Ducts are not included on the Awocos, and the run has to reach outside through the roof or a wall.

Know How You Will Switch It On

Both Awocos are remote, touch, gesture or voice only and say they do not work with wall switches. The VICTORY includes a glass wall switch. The Broan-NuTone power pack has a rocker on the unit and an optional wall remote sold separately. On a hood set high in a ceiling or a tall shell, the control you can reach matters more than the number of speeds.

Ask About Make-Up Air and Use a Professional

Several hoods here state 600 to 1200 CFM. Some areas require make-up air above a certain airflow; ask the local building department. Every option here involves cabinet or ceiling framing, ducting and wiring, so a licensed contractor and electrician are the safe choice, and a permit may be needed.

Common Mistakes

• Buying a ceiling hood for a kitchen with no attic. Two of the three ceiling hoods here put a 20.4 lb blower in the attic; only the VICTORY keeps it on board.
• Assuming a cutout fits between joists. The Awoco flush split needs a 17 in deep cutout; joists at 16 in centres leave about 14.5 in, by our arithmetic.
• Measuring the cabinet front instead of the inside. The FIREDRAJA fits a 27–28 in opening; the JOCO is 18.5 in deep, deeper than many upper cabinets.
• Expecting cabinet-level capture from a ceiling hood. A ceiling hood may sit twice as high above the burners; all three here state 600 CFM or more for that reason.
• Planning a wall switch for an Awoco. Both listings say wall-switch control is not compatible; the remote is the control.
• Choosing 900 to 1200 CFM without asking about make-up air. Some areas require it for high-CFM hoods, and it changes the job.
• Building a 42-inch shell before you have the duct size. The SINDA states an 8 in round duct; the JOCO does not state one.
• Treating any of these as a weekend job. Every option needs framing, ducting and wiring; a contractor and electrician are the safe choice.

Who Should Buy Which

Buy the Broan-NuTone PM300SS if you are building a custom hood over an everyday range. The best rank here, a stated cabinet depth of 13 or 15 inches, 3 sones and Amazon.com as seller. Accept 300 CFM and a wall remote sold separately.

Buy the VICTORY Sunset if you want a flush ceiling hood and have no attic. It fits between 16-inch on-centre joists, keeps its 600 CFM blower on board, includes a wall switch and has a lifetime motor warranty. Confirm the finish and the cutout first.

Buy the JOCO 42-Inch if your range is wide and your shell is purpose-built. 900 CFM, 40 to 65 dB stated, a 10-year motor warranty and the second-best rank. Accept 18.5 inches of depth and the make-up air question.

Buy the KENDRAJA 24-Inch if your range is 24 inches. The only matching hidden hood here, at 400 CFM, ducted or ductless. Confirm the speed count and cabinet depth.

Buy the FIREDRAJA 27.8-Inch if you are converting an existing 30-inch upper cabinet. It names the 27 to 28 inch opening it fits and offers 400 CFM with gesture control. Accept that it gives no noise figure.

Buy the HisoHu 30-Inch if you want the most airflow in a hidden insert. 1200 CFM, 55 dB at max stated, a ductless kit and baffle filters. Get its depth and warranty in writing first.

Buy the magicplux 30-Inch if you want 600 CFM on a budget and will work from the manual. Ducted or ductless with a named charcoal filter. Accept that built-in is stated only in its title.

Buy the Awoco 30 x 14-1/2 split if you have an accessible attic and want a quiet ceiling hood. Approximately 800 CFM with 40 to 52 dB stated, because the motor lives upstairs. Accept remote-only control.

Buy the Awoco 30-Inch flush split if you want a deeper ceiling or wood hood with every control option. 800 CFM, an 18-3/8 inch hood, voice and gesture control and a stated cutout. Accept 62 dB on low and possible joist work.

Buy the SINDA 42-Inch if your range is wide and you want more airflow than the JOCO. 1150 CFM, a stated 8-inch round duct, 10 inches tall and three certifications listed. Accept 65.5 pounds, a 2-year warranty and a single 67 dB noise figure.

Frequently Asked Questions

Final Verdict

A hidden range hood is two different products, and the first decision is which one. Seven of the ten here hide in a cabinet or custom shell. Three sit flush in the ceiling, and one of those can go in a wood hood instead.

The cabinet route asks for a box of the right size. Inserts here run from 21.37 to 41.73 inches wide and 300 to 1200 CFM. Only two say what cabinet they need: the Broan-NuTone power pack gives 13 or 15 inches of depth, the FIREDRAJA a 27 to 28 inch opening. The ceiling route asks for space above: a 16-inch joist bay for the VICTORY, an attic for both Awoco blowers, and a 17-inch cutout on the flush split that will not fit between standard joists. All three ceiling hoods state 600 CFM or more, because a hood that far from the burners has to pull harder.

Popularity follows the easier job. Every cabinet insert outranks every ceiling hood. Whichever route you choose, it is a major installation, with framing, ducting and wiring, and a contractor and electrician are the safe choice. Ask about make-up air before choosing a high-CFM model.

If you buy one hidden hood from this page, make it the Broan-NuTone PM300SS, set into a custom shell over an everyday range: the best rank here, a stated cabinet depth and 3 sones, sold by Amazon.com. If you want nothing in view and have 16-inch joists, the VICTORY Sunset is the flush ceiling hood that asks least of the space above; if you cook hard over a wide range, the JOCO 42-Inch brings 900 CFM and a 10-year motor warranty to the cabinet route.
